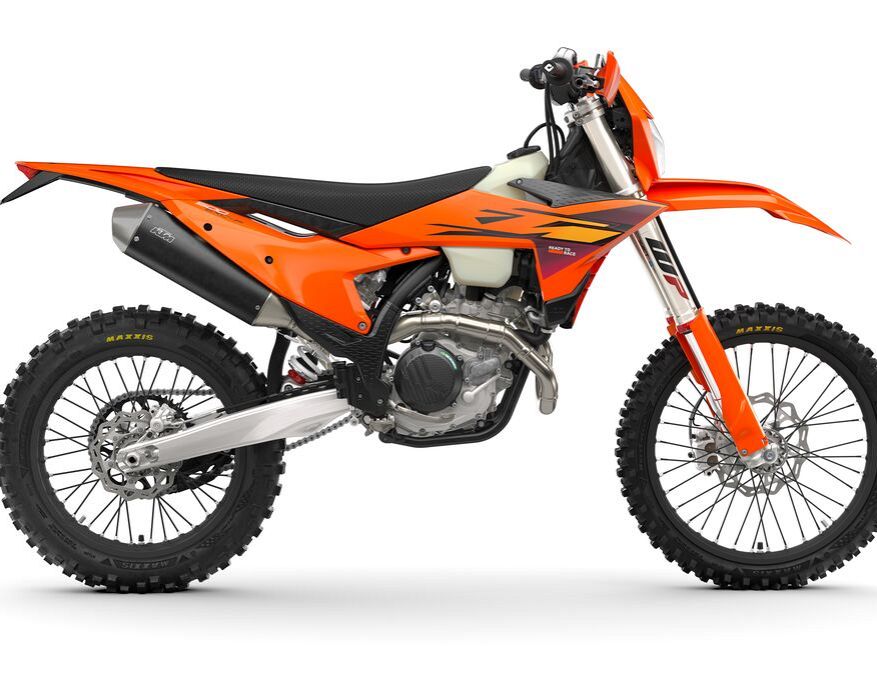

2027 KTM 500 EXC-F
Price on request
| Displacement (cc) |
510.9 cc |
|---|---|
| Seat Height (mm) |
963 mm |
| Dry Weight (kg) |
108.2 kg |
2027 KTM 500 EXC-F — 510.9 cc 1-cylinder 4-stroke enduro with 6 speed gearbox. Price on request — enquire for availability, a quote or a test ride at ANB Motorsports, the exclusive KTM distributor in the UAE.
| Engine Type |
1-cylinder 4-stroke |
|---|---|
| Displacement (cc) |
510.9 cc |
| Seat Height (mm) |
963 mm |
| Dry Weight (kg) |
108.2 kg |
| Fuel Tank (L) |
8.5 L |
| Model Year |
2027 |
| Brand |
KTM |
| Engine Size |
500–900 cc |
| Condition |
New |
| Engine |
1-cylinder 4-stroke engine, water-cooled |
| Bore Stroke |
95 x 72 mm |
| Gearbox |
6 speed |
| Cylinders |
1 |
| Compression Ratio |
12.75:1 |
| Battery |
Lithium-ion battery Battery voltage: 12 V |
| Fuel System |
Injection |
| Control |
OHC, 4 valves controlled via rocker arm |
| Lubrification |
Pressure circulation lubrication with 2 trochoidal pumps |
| Cooling |
Water cooling, permanent circulation of coolant by water pump |
| Clutch |
Multidisc clutch in oil bath, hydraulically activated |
| Drive System Type |
Chain |
| Frame |
Central tube frame made of chrome molybdenum steel tubing |
| Front Suspension |
WP XACT-USD, Ø 48 mm |
| Rear Suspension |
WP Xplor PDS shock absorber |
| Front Brake |
Disc brake |
| Rear Brake |
Disc brake |
| Wheels |
MAXXIS Maxx Enduro |
| Ground Clearance |
347 mm |
